Mechanical impact testing is a method used to evaluate a material's resistance to sudden force or shock loading, often simulating real-world impact conditions. It helps determine properties such as toughness, fracture behavior, and energy absorption capacity.
Mechanical Impact Testing is a fundamental technique used to assess how materials respond to sudden, high-rate loading conditions such as shocks, collisions, or drops. This method simulates real-world impact scenarios and is commonly used to evaluate a material’s toughness, brittleness, and energy absorption capabilities. Tests such as the Charpy and Izod impact tests involve striking a notched specimen with a swinging pendulum to measure the energy required to fracture the material. These tests are essential for understanding failure behavior under dynamic conditions and are widely applied in fields like automotive, aerospace, construction, and consumer product safety to ensure reliability and performance under impact loads.

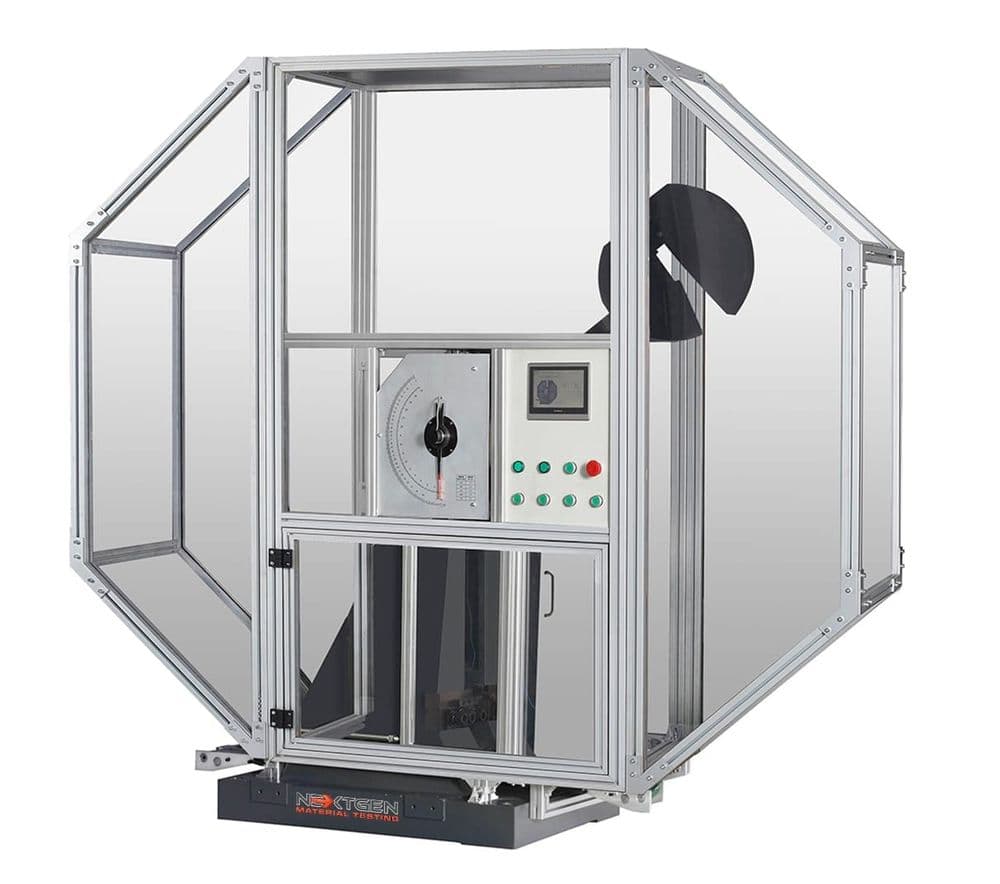

Mechanical impact testing works by applying a sudden force to a notched or unnotched specimen to evaluate its ability to absorb energy before fracturing. In commonly used tests like the Charpy or Izod impact tests, a pendulum hammer is released from a known height and strikes the sample with controlled velocity. The energy absorbed by the specimen during fracture is calculated based on the difference between the initial potential energy of the pendulum and the remaining energy after impact. This absorbed energy reflects the material’s toughness — its resistance to crack propagation and failure under dynamic loading. The presence of a notch in the specimen helps localize stress and simulate real-world stress concentrators such as flaws or joints.
Mechanical impact testing is used to evaluate a material’s ability to absorb energy and resist fracture under sudden or high-speed loading conditions. It helps determine impact strength, ductility, and toughness.
We offer various standardized methods including:
Samples should generally conform to standard dimensions (e.g., ISO or ASTM specifications). Notched or unnotched samples may be required depending on the test type. If you are unsure, we can assist with specimen preparation or provide guidance.
Yes, but it depends on the testing method. Drop-weight testing allows more flexibility, while Charpy and Izod tests require specific sizes and shapes. Please send us a photo or drawing for evaluation.
| Material | Section Dimensions | Notch Cross-sectional Area A (cm²) | Empty Pendulum Energy (N*m) | Impact Absorbed Energy (N*m) | Impact Work (N*m) | Impact Toughness (N*m/cm²) |
|---|---|---|---|---|---|---|
| Length a (mm) | Width b (mm) | |||||
| Cast Iron | 10.100 | 8.440 | 0.850 | 0.488 | 2.319 | 1.831 |
| Low-carbon Steel | 10.000 | 7.900 | 0.790 | 0.488 | 150.327 | 149.839 |
